Vicon PS403

• All SuperFlow pendulum spreaders can be controlled either manually or hydraulically.

• The plastic scale on the spreading unit allows continuous adjustment of the application rate in kg per hectare, so the risk of spreading errors is minimal.

• Using the spreading table and the dial you can determine the desired quantity of fertiliser for every spreading width and forward speed.

• With the optional available adjustment key, you can easily adjust your spreading width (angle of the spreading spout will change). Ideal for sand spreading or in orchards!

• Direct access to the most recent test results at www.viconspreadingcharts.com or download the Spreading Charts Application via or App Store or get it on Google Play

Vicon offers you a wide range of spreading spouts for a wide variety of applications.

• Long spreading spout: used for normal spreading widths 9 - 14m.

• Short spreading spout: used for small spreading widths, spreading width 4 - 8m.

• Band spreading spout: for spreading in orchards, vineyard spreading width 2 - 8m (long) or for pesticides, spreading widths 0.75 - 4.50m (short).

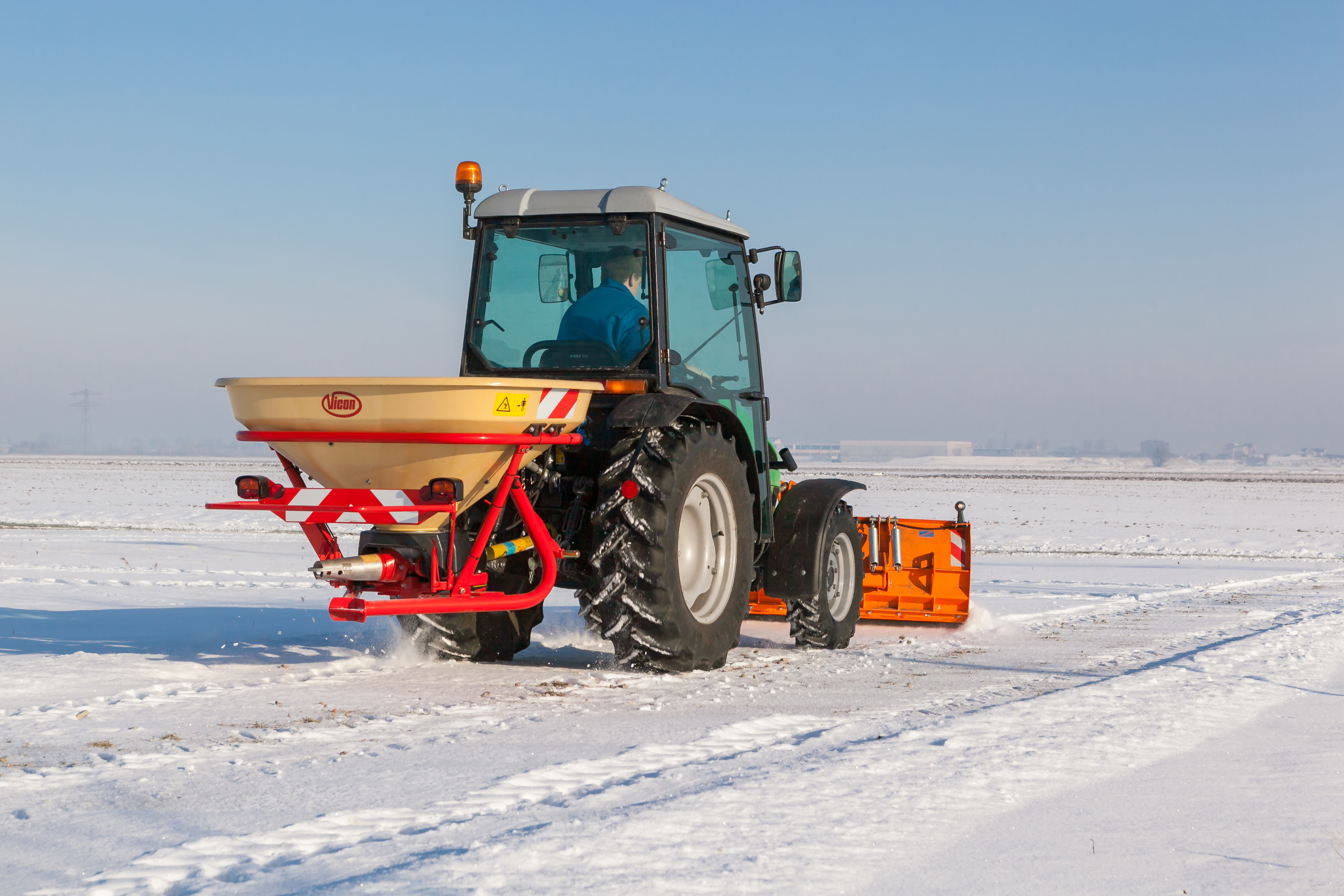

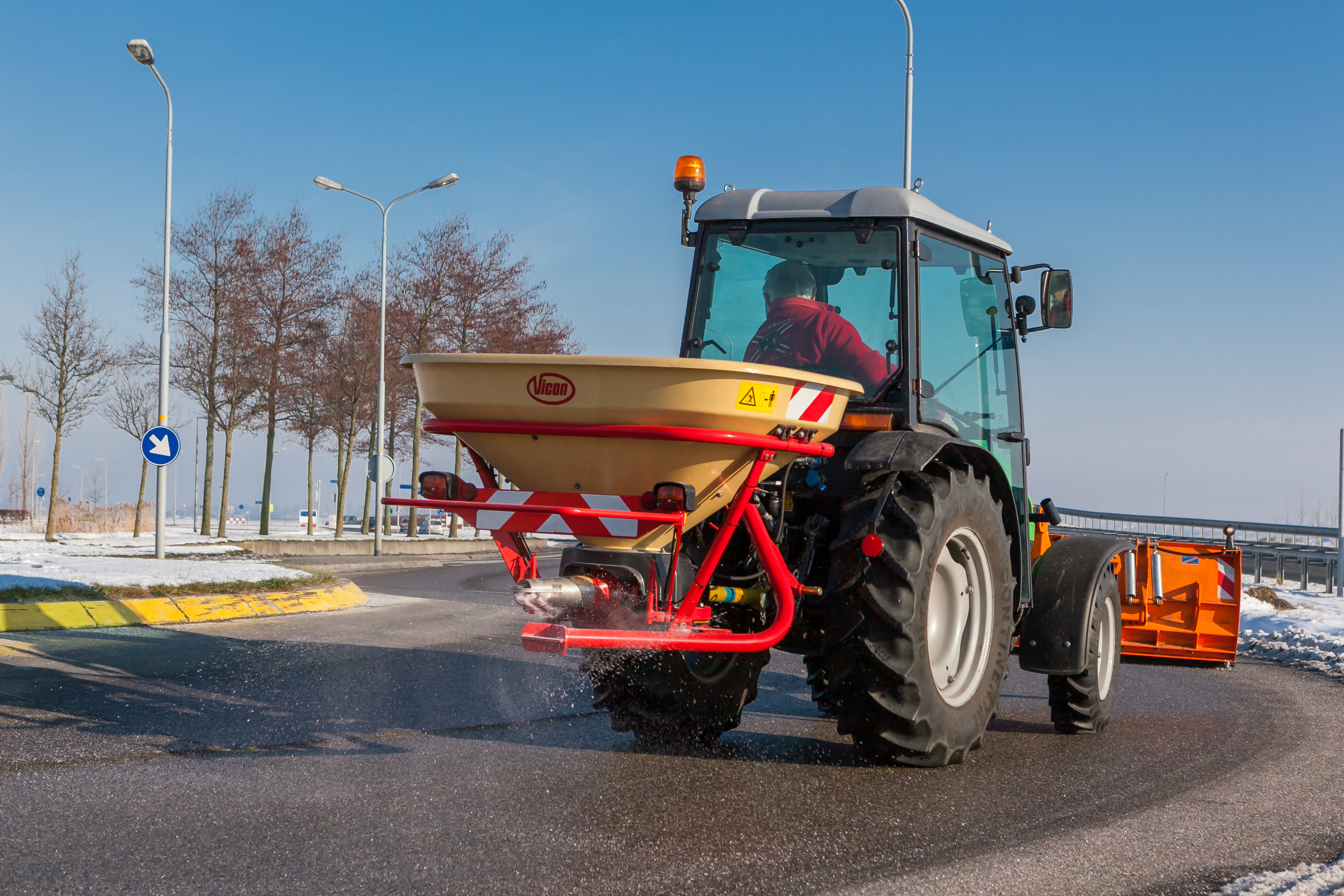

• Sand, salt and grid spreading spout: used for road construction and combatting icy conditions, spreading widths 6-12m (long), 5 - 6m (medium) or 2 - 4m (short) are possible.

• Boundary spreading spout: prevents fertiliser from spreading into ditches or hedges or ditches, spreading width 2-6m.

• Right side spreading spout: for fish-farms and spreading on dikes, spreading width 4 - 6m.

• Tramline cylinder: using the tramline cylinder the spreader is inclined, allowing spreading up to the border of the field. You just tilt the spreader 7° if you have to operate near fences or ditches.

• The PS-ED II on-board computer allows the metering disc to be adjusted from the tractor cab and fits to all Vicon pendulum spreaders.

• Forward speed is continuously checked by a wheel sensor or by radar and transmitted to the PS-ED II system which in turn ensures a constant application rate whatever the forward speed. The consequence is an absolutely uniform spreading pattern in the direction of travel. The quantity can be increased or decreased at any time during work.

• Operators will find the PS-ED II exceptionally easy to operate. All you have to watch over is a control panel with its clearly understandable display.

• To increase the hopper capacity of the basic pendulum spreaders there are different hopper capacities available: 100, 110, 200, 400, 600 and 900 litres, depending per model.
• A hopper cover protects the fertiliser from moisture and dirt. For filling the hopper, the cover can be easily folded.
• For all PS spreaders there is an optional lighting set available. Also, reflector decals can be ordered for safe transport on the roads.
• A calibration container allows calibration tests to be performed with spout in place.
• The agitator ensures an even material feed to the spreading unit. A safety grid protects the agitator.
• The set of pivoting wheels allows the spreader to be easily moved when detached from the tractor.
• The fine seed insert shuts two of the three openings of the metering device for the application of small quantities of fine seed.
• A stainless-steel insert for the hopper is needed when spreading sand or salt.
