Highlights
- Very lightweight construction for small tractors
- Curved tine arms for cleaner raking performance
- Compact design with low horsepower requirements
- Maintenance-friendly oil-immersed rotor
Description

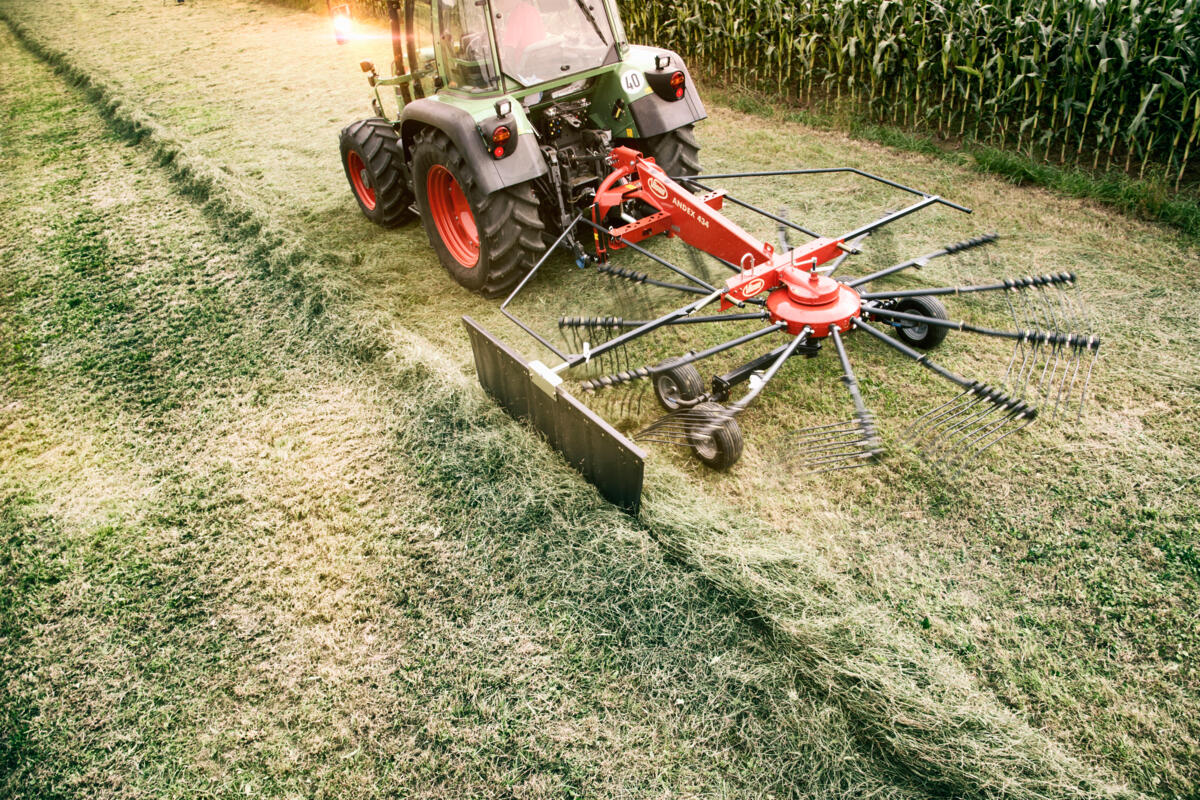

Vicon Andex 353 3-point mounted rotary rakes with a working width of 3.50m is designed for low horsepower tractors and are similar to higher-specified machines. All Vicon CompactLine rakes curved tine arms features are designed to form fluffy and straight windrows for superior raking quality at high speeds. The fully enclosed CompactLine cam discs are oil-filled and secure to be maintenance-free, ensuring a long life
Features
- The Vicon CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Vicon-developed cam tracks are specifically tailored to individual rotor diameters for optimal raking at any working width and on any model.
- All Vicon CompactLine rakes feature curved tine arms for significantly cleaner raking performance and optimised swath formation.
- This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop, and also gives a cleaner lift out of the tine from the formed swath.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Andex | 353 | |
|---|---|---|
| Working Width | 3.5m | |
| Tine Arms | 10 | |
| Weight (kg) | 420 | |
| Rotor diameter (m) | 2.80 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
Andex 323 |
3.20m |
9 |
315kg |
Andex 353 |
3.50m |
10 |
420kg |
Andex 394 |
3.90m |
11 |
460kg |
Andex 424T |
4.20m |
11 |
570kg |
Andex 434 |
4.30m |
12 |
480kg |
Andex 474T |
4.70m |
12 |
665kg |
