Race Car Technology for Mower Conditioners!

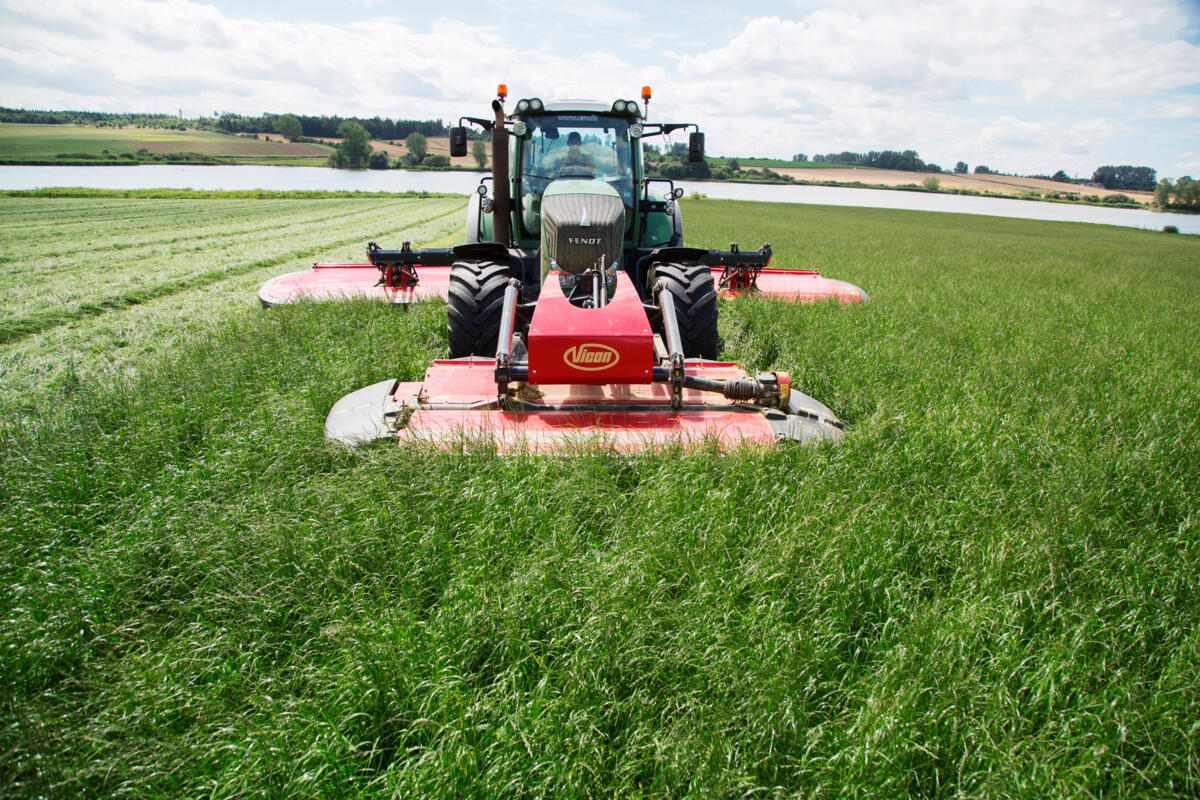

The all-new EXTRA 7100T Vario delivers an outstanding performance with its´ completely new suspension concept, 10.20m working width and hydraulic adjustment of working width and overlap. EXTRA 7100T is fitted with the new Vicon suspension concept called QuattroLink. The mowing unit is pulled by four suspension arms fitted onto a fixed carrying arm that allows the mowing unit to float independently over the field, adjusting highly accurately and instantly to any changes in ground contours.
- Up to 10.20m working width.
- New innovative QuattroLink racecar suspension concept.
- Flexible suspension – 700mm movements, 400mm upwards and 300mm downwards.
- NonStop BreakAway protection across full working width.
- Hydraulic adjustment of overlap on the go.
- Ground pressure remains the same, even when overlap is changed.
- Minimum 500mm ground clearance during headland turns.
- Dual adjustment of conditioner hood - both front and rear end can be adjusted.
- Integrated parking feet for vertical storage.
- Counter-rotating triangular discs.
Racecar Technology Applied for Mower Conditioners
What makes the QuattroLink suspension unique? The mowing unit is pulled by four suspension arms fitted onto a fixed carrying arm that allows the mowing unit to float independently over the field, adjusting highly accurately and instantly to any changes in ground contours.
No Compromises on Flexibility
The mowing pattern is extremely flexible with a vertical working range of 700mm up and down and a transverse working range of 30°. The 4 arm suspension concept ensures constant ground pressure during working operations.
How You Will Benefit from QuattroLink
Like a race car you want better tracking, ability to go at faster speed and adjust instantly to changing field conditions when operating your mower conditioner. These are the main benefits you will experience when running the EXTRA 700 series. The four suspension arms provide the mowing unit with an exceptional flexibility in adapting instantly to demanding ground contours inviting for higher speed and more productivity.
Our NonStop BreakAway system just got even better. With the new QuattroLink suspension this system now offers protection across the full working width of the mower, including the part closest to the tractor. There are no limiting factors on the inside part of the mower, giving the driver true peace of mind. When hitting an obstacle in the field, the mowing unit will instantly move backwards and up, and then return to the original position.
Hydraulic Adjustment of Overlap
EXTRA 736T Vario and 7100T Vario are fitted with hydraulic SideShift integrated into the carrying arm allowing each mowing units to move 400mm. To easily compensate for changing field conditions, the adjustable overlap is designed as a telescopic arm, directly into the suspension.
Ground Pressure Remains Constant
During mowing operation the carrying arm always remains even to the ground, giving the mowing unit the freedom to instantly compensate and float across uneven ground contours. The true benefit of the suspension concept is that even though overlap is changed, the chosen ground pressure remains the same.
The EXTRA 7100T provides generous clearance across the complete cutterbar, including the inside area. When lifting the mower on headlands, the mowing unit is raised and the carrying arm is tilted to a 10° angle. This provides the EXTRA 7100T with a level ground clearance of minimum 500mm across the full working width. When lowing the mowing unit the carrying arm is lowered evenly without one side touching the ground before the rest of the mower, avoiding unnecessary stress and wear on the mower
Compact During Transport
The mower folds hydraulically for transport and the telescoping frame arm moves to lowest overlap position, to reach a transport height of only 3.90m. And there is no need to leave the tractor before heading off, the outer FlexProtect protection guard hydraulically folds into transport position.
Parking, Safe and Sure-Footed
With the integrated parking device, storage of the EXTRA 7100T is made easy and convenient, requiring a minimum of space during winter storage. The mower is firmly parked on strong and stable parking foot.
Effective SemiSwing Conditioning for Quality Feed
Speed up the drying process with SemiSwing tine conditioning. SemiSwing offer aggressive conditioning for faster wilting and excellent tine protection with virtually no wear and tear.
Get the Full Conditioning Effect with Minimum Blockages
Vicon’s SemiSwing tine conditioner is an aggressive full width conditioning system. When the rotor starts rotating, the SemiSwing tines will instantly move into their working position and stay in a fixed position.
Swath Plates Automatically Expand
Swath plates automatically expand when being slided inwards to support efficient and accurate swathing.
Easy Change-Over for Widespreading
Changing from swathing to widespreading is virtually a one minute job. The swath plates are easily slided to the side and the FlipOver widespreading vanes are turned 180°. No tools are required.
- The EXTRA cutterbar is designed for low maintenance and offers a very quiet operation.
- Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy working day
- Fully welded cutterbar for a very strong construction.
- Even number of contrarotating discs for improved overlap.
- Three bladed discs for more cuts.
- Smooth stone guard design for excellent cutting quality.
- High oil capacity ensuring low working temperature.
- Low noise level thanks to specially tooled gear wheels.
- Twisted knives for a clean cut in all conditions.
GEOMOW unlocks the full potential of the Vicon 7100 Vario. The Vicon GEOMOW application delivers automatic headland lift via section control.
GEOMOW removes the risk of mistakes when lifting mowing units too early, or lowering them too late. When reaching the end of the field, the front mower is automatically raised as it hits already cut grass on headlands, rear units are lifted at the right time as well, allowing the operator to fully focus on turning as efficiently as possible.
