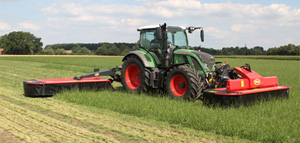

The new EXTR∆ 395 provides efficient performance with its 9.5m working width paired with a low weight design. It is purpose build to low operating costs in terms of power and fuel consumption, with power requirements starting at only 150 hp.

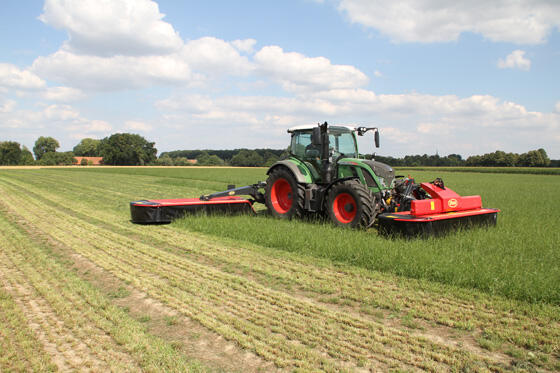

Vicon expands its range of low weight butterfly combinations by adding the new EXTRΔ 395 to the existing 8.75m version EXTRΔ 390. The new mower combination consists of 2 x 3.6m wide mowing units, adding up to a working width of 9.5m
High Output Mower
Low weight doesn’t mean low spec with the EXTRΔ 395. It is designed to match the needs of large-scale mowing and is packed with features to meet these demands. The centre suspended mowing units in combination with the three-bladed discs offers an unmatched cutting performance. With three blades per disc each knife has a third less load compared to two-knifed discs. With a third less load on each knife they will last and cut for longer period, providing longer period with neat, cleanly cut stubble.
Low Weight Promotes Low Fuel Consumption
The new EXTR∆ 395 is an eco-friendly, energy saving solution able to work on tractors with as little as 150hp. The low weight of only 1500kg together with the ideal weight distribution that butterfly combinations offer gives the optimum combination of low power requirements, low weight and high efficiency.
Centre Suspended Mowing Units
The mowing units are centre suspended via a suspension spring, to give an even weight distribution across the complete mower width. Faster and more precise adaptation to ground contours is also achieved because of the centre suspended design. The benefit is less skid wear and optimum protection of the stubble.
For greater versatility, the EXTR∆ 395 can be adjusted for optimal operation according to different circumstances such as field contours or working width of the front mounted mower. To ensure optimal overlap between front and rear units, the mowing units can be mounted in two positions on the suspension arm.
The Vicon BreakBack solution protects the cutterbar from foreign obstacles, and automatically returns the mowing unit into work position.

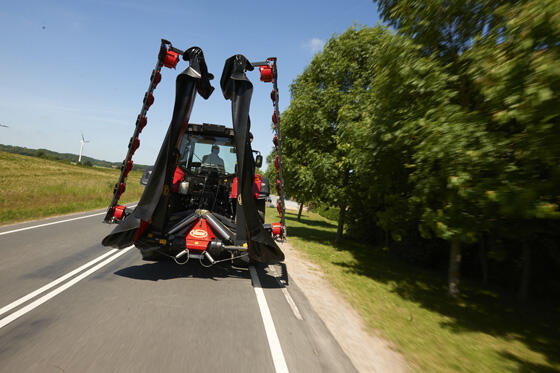

The EXTRΔ 395 will stay below 4m transport height. For transport the mower folds into a compact position above 90⁰, distributing weight evenly for better stability during high speed road transport.
23rd September 2013
