Vicon iXtrack T6 - For Maximum Productivity and Performance
With the new iXtrack T6 trailed sprayer, Vicon is entering a completely new market segment with the around 6400 litres of tank volume, for maximum performance and productivity. This in combination with precise, easy and cost effective spraying.
- Ease of use: the Vicon sprayer technology ensures that spraying is done in the most easy and efficient way, as high precision spraying is an important factor in our environment nowadays.
- Stability: the central frame in combination with the special tank design gives the sprayer a very low centre of gravity and compact dimensions which are beneficial of easy headland turning.
- Precision spraying: the iXtrack T6 is equipped with a smooth, suspended parallelogram that is active in spraying position, but also during transport for optimal boom stability. The parallelogram combines optimal stability with soft boom balancing and limited vertical movement to minimise spray height deviations, securing correct crop coverage.
- Intelligent electronics: the iXtrack T6 series is 100% ISOBUS compatible as standard. The innovative iXspray hardware and software with intuitive touch interface guarantees an user friendly operation of the sprayer.
- Liquid management: the choice can be made between manual control of the EasySet control panel, iXclean Comfort for semi-automatic control or iXclean Pro fully automatic valve management system. The iXflow spray line recirculation system is available with pneumatic nozzles or as iXflow-E with electric controlled nozzles.
- Connectivity: the first step into the world of connectivity with our IsoMatch applications. Connect yourself easily to your machine with IsoMatch FarmCentre, IsoMatch TopService or IsoMatch TopRemote.
The iXtrack T6 is available in combination with a low linkage.
Maximum Steering Possibilities
The iXtrack T6 offers maximum user friendliness and comfort by having a steering axle which contributes to excellent stability in different field conditions. The track width can be changed from 1.80m to 2.25 metres. This ensures maximum steering possibilities with a tight turning radius.
Smooth and Suspended
The iXtrack T series is equipped with a smooth, suspended parallogram that is active when in the field and in transport. The parallelogram combines optimal stability with soft boom balancing and limited vertical movement to minimise spray height deviations, securing correct crop coverage.
ErgoDrive Headland Management System
ErgoDrive headland management is standard equipment for the iXtrack T6. ErgoDrive assists the operator on the headland turns. It is activated by simply switching ON or OFF and ErgoDrive controls all the necessary actions, while the operator can focus on driving safely.
ENFO priming and rinsing is standard on all Vicon spray computers. Before spraying starts the spray lines are filled with chemicals exactly up to the nozzle by automatic shut off. After finishing or interruption, crop protection agents are automatically flushed out of the spray lines with a minimum of clean water consumption. This ENFO technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of products and saving water are the benefit for the environment.
iXclean Comfort is a semi-automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy; automatic filling stops when the programmed level is reached, and remote control of all ENFO rinising and priming functions are carried out from the cab! Simple prime the spray lines before you start and rinse them afterwards.
iXclean Pro is an advanced solution with fully automatic, electric valve management. It means all functions can be controlled from the cab. Switching between filling, agitation, spraying, diluting, priming, rinsing and tank cleaning, is extremely easy: just push the button! In addition iXclean Pro offers also a fully automatic multi-step rinsing and cleaning program with triple dilution for the entire sprayer. Pushing one button a comprehensive cleaning process including all lines will start. It is so thorough, that residue levels after automated cleaning are below 1%.
iXflow-E is the high pressure recirculation system with electric nozzle control. There is a free circulation of chemicals with a return of spray liquid back to the tank as spraying stops. This means there is no sedimentation in the spray lines and no dead ends for spraying or cleaning, even when the boom is in vertical position. During spraying each section gets under pressure from both ends of the spray lines, so the operator can immediately start spraying without any pressure drop. It is easy for the operator to program the number and size of sections which fits the best to their requirements and field situations.
The HSS spray boom combines a minimum of weight with maximum strength and stability. Special hardened Domex steel gives the spray boom a long lasting heavy duty high quality reputation. The aluminium bonding instead of welding of the HSA spray boom range provides a weight saving and gives remarkable strength.
HSS Spray Boom
The HSS spray boom is designed for professional use. The triangular construction provides perfect integration of the stainless steel spray lines, nozzles and nozzle holders and the optimal hose routing where all is well protected. Working widths from 18 up to 40 metres with a variation in different section lengths offer the sprayer adapted to customer demands!
HSA Spray Boom
The HSA spray boom offers efficient protection of the nozzle holders within the bottom profile. This profile is designed for easy cleaning and much more. With no sharp angles, no liquid and residues can be trapped. The anodised surface protects against corrosion and scratches.
Compact and Stable
In transport position the HSA and HSS spray boom fold away nicely over the patented tank design and far away from the tractor cab. This results in a transport width of 2.55m and a height below 4m that together with the low gravity point provides excellent stability on the road, as well in the field.
Boom Guide Comfort
The two ultrasonic sensors on the boom can control the spray height via the central slope correction and boom lift functions. The cost-effective system is suited to gentle slopes, uneven crop conditions and lower driving speeds.
Boom Guide Pro
This advanced system uses three ultrasonic sensors to control left- an right-hand boom sections independently for the ultimatic guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every situation!
Boom Guide ProActive
The system proactively reacts on boom movement and controls both the central and independent slope correction, as well as boom lift functions to guide the boom over the crop canopy, soil surface or a combination of both modes.
Boom Guide 5 Sensor Extension
The Boom Guide 5 sensor extension provides two additional ultrasonic sensors to ensure proper height measurements with booms reduced to 24 metres.
Balancing in Flatland Conditions
An especially designed balancing sytem for flatland conditions is available for HSS spray booms from 32-40 metres. This system does not require any electronic boom guidance in flatland areas. The advantage is a perfect boom guidance at higher speed and a total respect of the optimal nozzle distance to the crop, which result in highest efficiency of the application and reducing drift to a minimum level.
A storage locker is integrated on the left hand side behind the door allowing you to keep your safety and cleaning equipment or tools with you on the sprayer. An additional storage locker is available for the right hand side to create even more storage place.
Easy Accessible Filters
The transparant filter bowl provides direct view on the dirt degree of the suction filter without dismounting. A valve at the bottom allows emptying the filter content before removing the bowl to avoid contamination of the hands with chemicals. The self cleaning pressure filter prevents blocking via a continuous flow keeping the filter mesh clean. The undissolved particles are returned into the tank until they are completely dispersed.
The chemical inductor is an integrated part of the tank design. It is located next to the valve panel for easy access. Equipped with a circular rinsing system and waterproof cover, it can be rinsed safely with closed cover. Big quantities of powder and difficult mixtures are injected without any problems within seconds!
Clean Water Tank
The clean water tank is equipped with a level indicator. It can be filled via the opening on the clean water tank. It contains sufficient clean water for thorough cleaning with the several iXclean functions.
Filling via the Suction hose
External aspirate water is filtered first by the filter on the hose and then by the suction filter. In parallel you can already use the chemical inductor to add and premix chemicals.
Hand Wash Tap
You can wash your hands via the hand wash tap which is centrally located on the valve panel.
A cleaning kit with a 15 metre hose and a brush, can be connected to the pressure side of the pump. It is allowing precleaning of the sprayer in the field, using water from the clean water tank.
Dual Agitation System
The return flow agitation system keeps the mixture homogeneous during operation and can be easily switched off in case of foam risk or nearly empty tank. The powerful high pressure agitation with injector nozzles guarantees powerful mixing which can activate after filling or a long break.
The iXtrack T series are 100% ISOBUS compatible as standard, which means easy plug and play with the IsoMatch Tellus GO+ or PRO or any other AEF certified terminal. The innovative iXspray hardware and software with intuitive touch interface guarantees an user friendly operation of the sprayer. iXspray is full of nice features to make the operators life easy, save time and avoid mistakes in a busy working season, for example pre-sets for spray jobs and boom configuration can be configured easily.
The IsoMatch Grip adds control to your fingertips for easy control of the sprayer. From 1 up to 44 functions over 4 modes can be programmed freely by the operator. So you can start with basic functionalities and add other functionalities later on demand. Due to the ISOBUS AUX-N functionality the IsoMatch Grip can also be used to control other implements.
The combination of IsoMatch GEOCONTROL and GPS allows the operator to reduce overlap and over dosing, to increase crop quality and save costs. All this in combination with even high flow rates, because there is no impact on the section length, no loss of pressure or an unequal flow between sections. IsoMatch GEOCONTROL application fulfils the need in terms of easy, smart and efficient farming, by providing the use of automatic section control and variable rate applications.
When deciding what equipment to purchase, it is not always easy to find the optimal solution in the broad market offering of today. Technology is developing fast and tractors and implements are more and more equipped with high tech electronics. We understand this complexity and are committed to provide you with easy farming solutions. Therefore these cost-efficient ISOBUS Universal Terminals, IsoMatch Tellus and IsoMatch Tellus GO+ are made for easy machine control and efficient farming.
With its advanced hardware and software features, the IsoMatch Tellus PRO provides the optimal precision farming solution for an all-in-one control system inside your tractor cab.
IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything you need to get the maximum out of your machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives you the opportunity to view and control two machines and processes simultaneously.
Work easy. Be in control.
The new IsoMatch Tellus GO+ offers a more powerful processor, allowing for significantly faster responsiveness and increasing the ease of navigation. The IsoMatch Tellus GO+ can handle demanding applications like IsoMatch FarmCentre, allowing advanced features and remote connection to your implement for a higher yield at less cost.
Ease of setting up the machine with the soft keys and simple use of the hard keys and rotary switch for optimal control while driving remains the trademark of the IsoMatch Tellus GO+ terminal, and is testimony to Vicon's commitment to bring farmers the most advanced technologies to improve productivity and efficiency.
With manual guidance you are perfectly on track.
The IsoMatch InLine is a light bar which allows easy manual guidance. It is the perfect assistant to get you as close as possible to your desired A-B line. Mounted in the line of sight, you can easily see the distance from the A-B line and to which direction you should steer for the ideal position. The display of the IsoMatch InLine also displays the status of the machine sections, which adds more comfort of use. The LEDs can be dimmed for night operation.
Distance to A-B line with LED indication and a numeric display
Manual guidance in combination with IsoMatch GEOCONTROL
Displays status of machine sections
The essential accessory for IsoMatch GEOCONTROL.
The IsoMatch Global 3 is the GPS antenna, with DGPS accuracy, in the IsoMatch product range.
It enables satellite navigation for site-specific section control, variable rate application, manual guidance and field registration.
Allows manual guidance, automatic section control and variable rate in combination with IsoMatch GEOCONTROL
DGPS accuracy without additional subscription fees
Easy to fit with mounting brackets included
Made for smart, efficient and easy farming
IsoMatch GEOCONTROL is an advanced software application within the IsoMatch Tellus and IsoMatch Tellus GO+ that helps you to control all ISOBUS compatible Kverneland Group machines such as sprayers, spreaders and seeders! Combined with a GPS receiver it fulfills the future needs in terms of easy, smart and efficient farming!

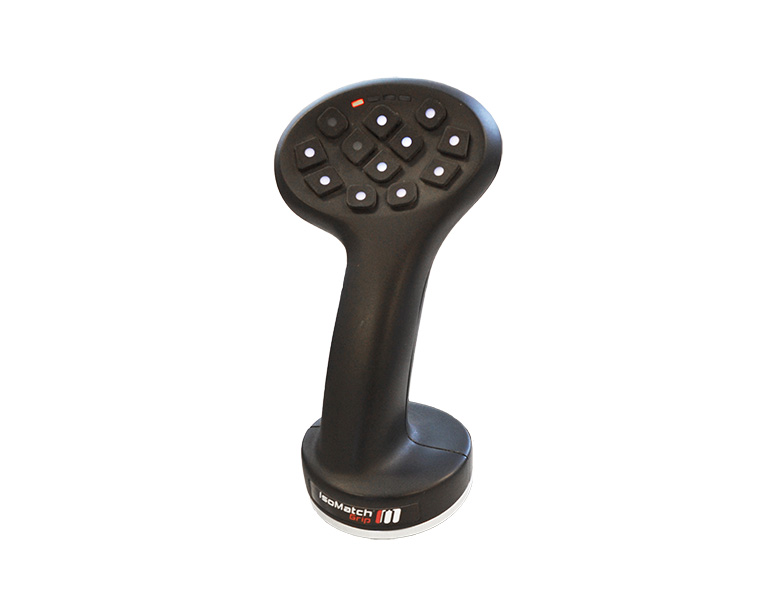

The IsoMatch Grip is an ISOBUS auxiliary device developed for great operator comfort and efficient machine control. Its ergonomic shape and the complete freedom of assigning and controlling a total of 44 implement functions from one device are unique in the market today. From your fingertips you have endless possibilities to operate all machine functions as desired. And assignments are saved per machine making it even more applicable to your needs.
Whether you are a farmer or contractor with a fleet, IsoMatch FarmCentre gives you a complete overview of your business. You can track the movement of your fleet in real time or verify later where your machines have been operating. Keeping track of multiple machines spread over vast areas has never been so easy! Additionally, all alerts and notifications are sent directly to the IsoMatch FarmCentre web application, and the history of alerts is saved. Allowing dealer to access your account for remote support will decrease the risk of downtime and increase your productivity.
With IsoMatch FarmCentre, machine performance parameters can be tracked and analysed for optimal performance. Actual information about quantity of pressed bales, fertiliser consumption and more is shown in the application. All this you can check remotely from a computer or even a tablet or smartphone.
Quicker support in finding a fault in Kverneland Group machines
IsoMatch TopService is the new service tool software which replaces the “FlashCan” software. The tool includes significant improvements of user interface and functionality in addition to new advanced features.
Connect to a local wireless network on your IsoMatch Tellus Terminal.
IsoMatch Wireless (USB-stick) is complementary to the IsoMatch Tellus and makes it easy to connect to a local wireless network, such as your phone’s hot-spot, home network etc.
No additional costs of an internet service provider. When connected via the IsoMatch Wireless you can browse the internet, view the weather, Gmail, Google, etc.
The IsoMatch Eye is the camera option in the IsoMatch product range.
IsoMatch Eye is a camera that has been developed for use with our IsoMatch Tellus PRO and IsoMatch Tellus GO+ terminal. The IsoMatch Eye is switchable from rear view to standard view.
It gives you full control and overview of entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety e.g. when reversing the machine or manoeuvring around obstructions.
Changeable from rear view to standard view
Full control and overview of entire machine operation
Night vision by integrated LED’s
Technical specificationsDownload brochure
HSA 21 - 33 m / HSS 27 - 40m, 24/30m and 24/36m
Hitch linkage in combination with pulling eye or ball coupling
1.80 - 2.25m by changing rims
200 - 260 - 2x 200 - 2x 260 (l/min)
Clean water tank
IsoMatch Grip in combination with IsoMatch Tellus Pro, IsoMatch Tellus GO+ or any other ISOBUS terminal
iXclean Comfort / iXclean Pro
