Description
Quality, Productivity and Performance

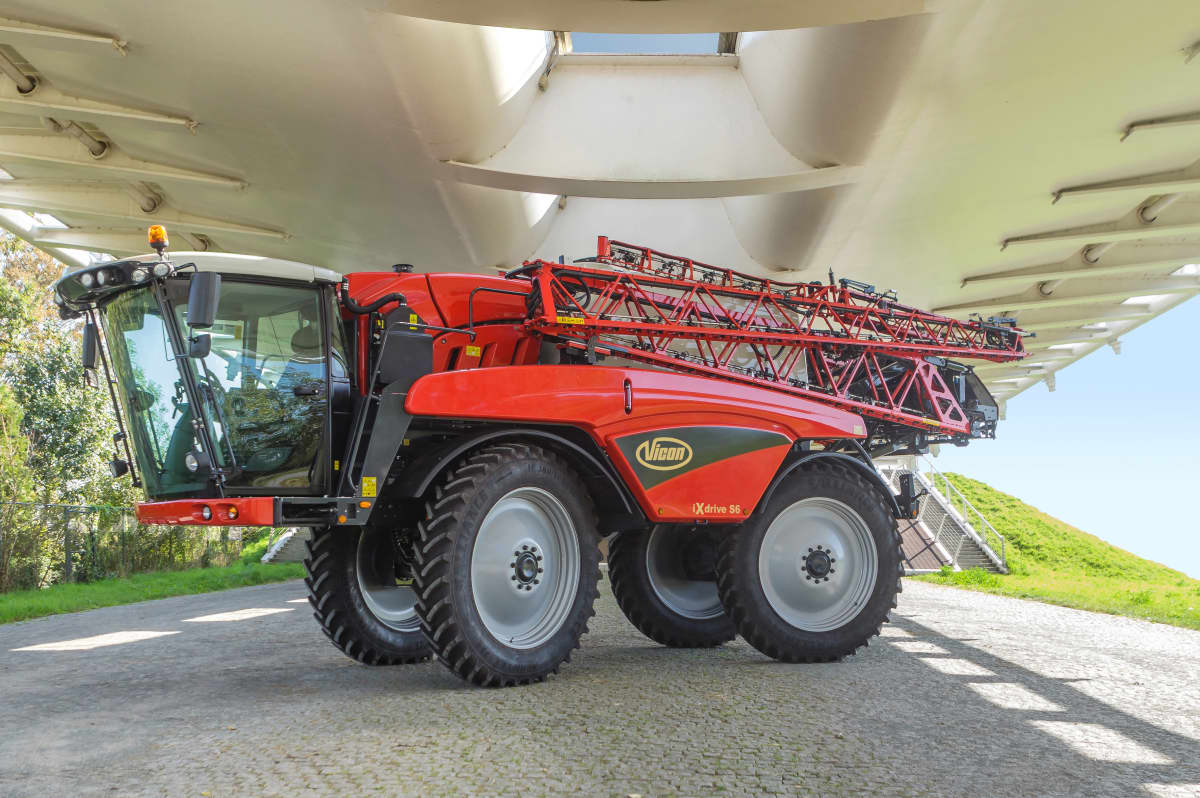

The iXdrive S6 comes in two models, the iXdrive HP as a basic model and the iXdrive HP ECODRIVE as the top model, with new features like increased power Stage V engine. The iXdrive is designed to spray the right amount, in the right place, at the right time. This is made possible by iXclean Pro, automatic valve management and iXflow-E high pressure circulation system with individual nozzle control, which are equipped standard on the iXdrive. The EasySet control panel offers a clean and convenient workspace with all needed components directly at hand. The spraying technology is easy to operate from the cab with the Vicon iXspray technology on the standard equipped IsoMatch Tellus PRO Terminal and the IsoMatch Grip for easy, simple, fingertip control.
The Advantages:
- New standard features: iXflow-E individual nozzle control, iXclean Pro and automatic valve management
- Easy operation, including EasySet control panel
- Excellent driving comfort
- Possible in combination with IsoMatch GEOCONTROL
- HSS steel or HSA aluminium side folding spray booms
Features
HSS 24-27-28-30-32-33-34-36-38-39-40m Compact Side Folding Steel Booms
- The special HSS profile combines a minimum of weight with maximum strength and stability. The HSS boom range is designed for professional use. It's triangular construction provides perfect integration of the stainless steel spray lines, nozzles and nozzle holders and the optimal hose routing where all is well protected. The HSS boom range consists out of a range of two-part folding (24-30m) and three-part folding (32-40m) spray booms. HSS 32-40m 2nd generation boom is designed for higher capacity, higher working speed and higher demands.
HSA 24-27-28-30m High Tech Side Folding Aluminium Booms
- The high tech HSA aluminium spray boom efficiently protects the nozzle holders within the bottom profile of the boom. This profile is designed for easy cleaning with no sharp angles or corners for residue and liquid to collect. The anodised surface protects against corrosion and scratches.
iXflow-E
- The HSS and HSA spray booms are equipped as standard with iXflow-E. iXflow-E is the high pressure recirculation system with electric nozzle control. There is a free circulation of chemicals with a return of spray liquid back to the tank when spraying stops. This means there is no sedimentation in the spray lines and no dead ends for spraying or cleaning. During spraying each section gets under pressure from both ends of the spray lines, so the operator can immediately start spraying without any pressure drop. It is easy for the operator to program the number and size of sections which fits the best to their requirements and field situations.
Boom Guide Pro
- This advanced system uses three ultrasonic sensors to control left- an right-hand boom sections independently for the ultimate guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every situation!
Boom Guide ProActive
- The system proactively reacts on boom movement and controls both the central and independent slope correction, as well as boom lift functions to guide the boom over the crop canopy, soil surface or a combination of both modes.
Boom Guide 5 Sensor Extension
- The Boom Guide 5 sensor extension provides two additional ultrasonic sensors to ensure proper height measurements with booms reduced to 24 metres working width by folding the tip-ends.
EasySet control panel
- The EasySet control panel is located between the wheels, at the left hand side of the iXdrive. The panel is redesigned to create a clean and convenient workspace with easy access to all the connections and filters. The control panel is well protected with a bottom cover to keep your operational area free of dirt and chemicals. It is equiped with a Focus3 colour terminal for valve operation and an operating panel for engine and hydraulic functions. The chemical inductor has a new compact design and is hydraulically folding. Furthermore, can be equipped with a Closed Transfer System, which will be obligatory in Europe in short term.
iXclean Pro
- The iXdrive is equipped as standard with iXclean Pro our fully automatic electric valve management system. It means all functions can be controlled from the cab or the control panel. Switching between filling, agitation, spraying, diluting, priming, rinsing and tank cleaning is extremely easy: just push the button! iXclean Pro also offers a fully automatic multi-step rinsing and cleaning program again with the push of one button! It just takes a few minutes and residue levels are after automated cleaning below 1%.

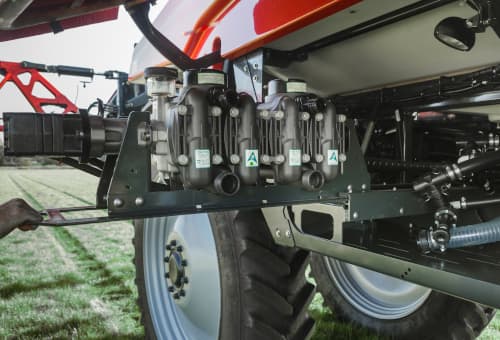

Pump with unique service position
- The 520l/min piston-membrane pump of the iXdrive is positioned on the right side directly under the main tank resulting in the smallest hose lengths possible. Unique is the service position of the spray pump. The pump is mounted on a rail to be able to easily slid out or to take out completely for maintance purposes.
iXspray
- The innovative iXspray spray computer program is operated by the IsoMatch Tellus Pro ISOBUS terminal in combination with IsoMatch Grip joystick. iXspray guarantees an user friendly operation of the sprayer. iXspray is full of nice features to make the operators life easy, save time and avoid mistakes in a busy working season, for example pre-sets for spray jobs and boom configuration can be configured easily.

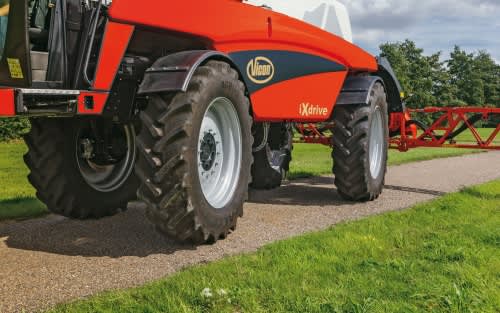

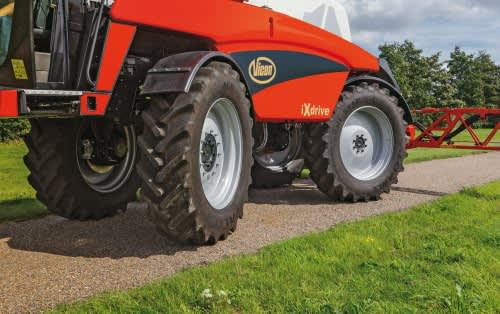

Wheel Axles
- The hydro pneumatic suspension on both axles provides operator comfort and boom stability both in transport and field operation. The 3D rear axle suspension allows axle movement, but limits the track influence on the spray boom. The strong chassis with an optimal gravity point brings a perfect 50%-50% weight balance in every situation, without any influence from tank filling or spray boom position. Manoeuvrability is guaranteed with 2-wheel, 4-wheel and crab steering modes as well as ErgoDrive headland control management as standard.

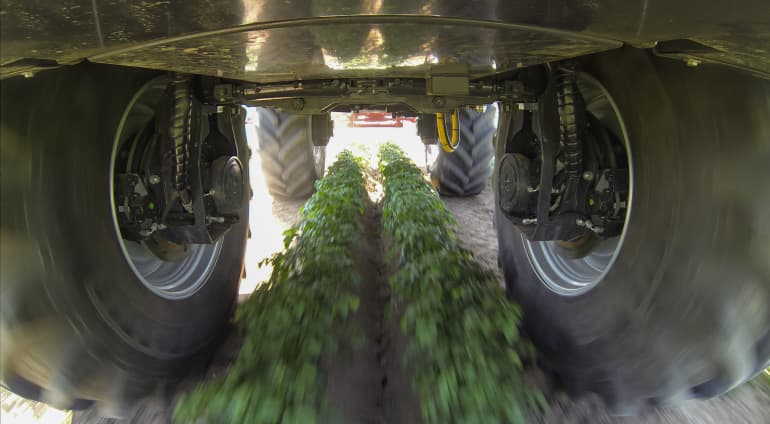

Adjustable Track Width
- For optimal protection of the crop the iXdrive S6 is available in three different ground clearances: 1.30m, 1.50m and 1.70m. The trackwidth for the 1.30m clearance frame is 1.80-2.25m. Both other clearances come with a track width of 2.25-2.95m both offering maximum stability and row spacing in different crops.
- Track width adjustment with hydraulic support is standard feature on the iXdrive. Optional is a hydraulic operation from the cab adding more comfort and flexibility.
Technical specifications
Technical specifications
Download brochureiXdrive S6 |
|||
Nominal tank capacity |
4250 (l) |
5200 (l) |
6150 (l) |
Maximum tank capacity |
4500 (l) |
5500 (l) |
6500 (l) |
Ground clearance |
1.30/1.50/1.70 (m) |
1.30/1.50 (m) |
|
Clean water tank |
520 (l) |
||
Spray booms |
HSA 24 - 30 (m) (2 part folding) / HSS 24 - 30 (m) (2 part folding) / HSS 32 - 40 (m) (3 part folding) |
||
Diesel engine |
John Deere PowerTech 250 HP Stage V optional 300 HP Stage V or 250 HP Stage II |
||
Track width |
1.80 - 2.25 / 2.25 - 2.95 (m) |
||
iXclean Pro, iXflow-E |
Standard |
||
